Actuator Needle Valves | Micro Flow Control Valves | FLUTEC

FLUTEC actuator needle valves provide accurate micro flow control, proportional modulation and high pressure shut-off for gas and liquid applications.

FLUTEC Electric Actuator Needle Valves are designed for precise flow regulation, remote automation and proportional control of gases and liquids. Combining a high precision needle valve with a multi-turn electric linear actuator, these valves provide accurate throttling, repeatable positioning and bubble-tight shut-off for demanding industrial applications.

Suitable for:

•  micro flow control, pressure regulation, dosing, sampling, calibration, laboratory systems and high-pressure process automation.

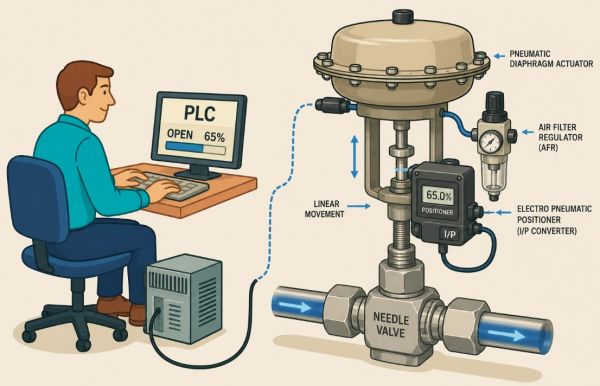

FLUTEC Diaphragm Actuator Operated Needle Valves combines a high-precision needle valve with a spring-return pneumatic diaphragm actuator and an electro-pneumatic (I/P) positioner, allowing precise valve positioning from a standard 4-20 mA control signal generated by a PLC, DCS, SCADA, or process controller.

• Sizes: 1/4" to 2"
• Working Pressures: from 5 bar upto 1500 bar (20000 psi)
• Materials: SS316, Duplex, Monel, Hastelloy
• Pneumatic Diaphragm Actuator: Spring Return
• Electro Pneumatic Positioner: Input / Output 4-20mA
• Bubble-tight shut-off
• Remote automation
• High positioning accuracy
• Suitable for gases and liquids
• PLC compatible
• Position feedback available
• Low hysteresis
• Long service life

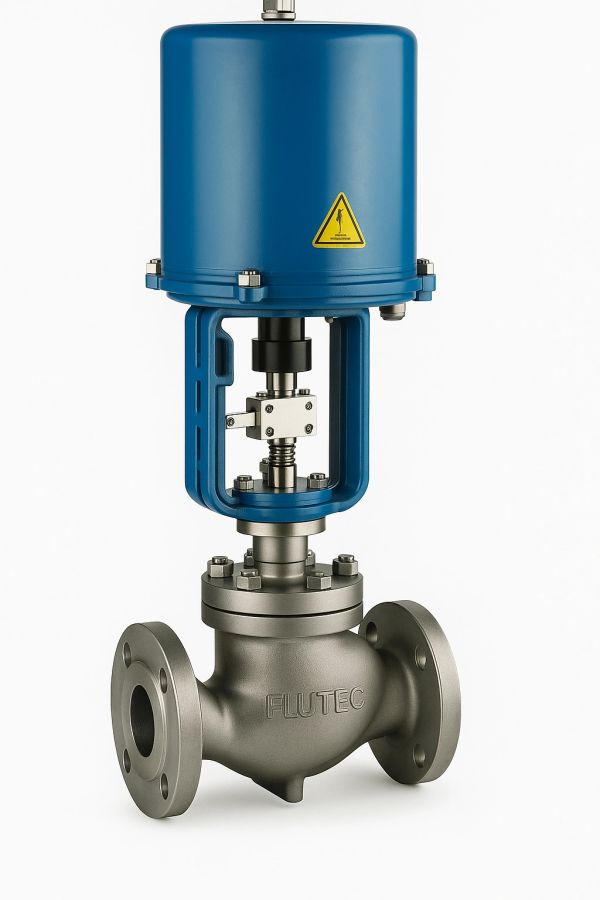

FLUTEC Linear Actuator Operated Needle Valves combines a high-precision needle valve with an Electric 4-20 mA control signal generated by a PLC, DCS, SCADA, or process controller to control the flow by restricting the orifice of needle valve.

• Sizes: 1/4" to 2"
• Working Pressures: from 5 bar upto 1500 bar (20000 psi)
• Materials: SS316, Duplex, Monel, Hastelloy
• Protection class IP67, NEMA4
• Bubble-tight shut-off
• Remote automation
• High positioning accuracy
• Suitable for gases and liquids
• Optional with ATEX / IECEX / PESO Certification
• Options: Proximity switch for feedback signal, MODBUS, etc.
• Optional with Failsafe Battery Backup or spring return
• Optional with, Explosion proof, Flameproof Motor Electric Actuator
• ATEX Ex db IIB T4 Gb
• ATEX Ex db IIC T6 Gb
