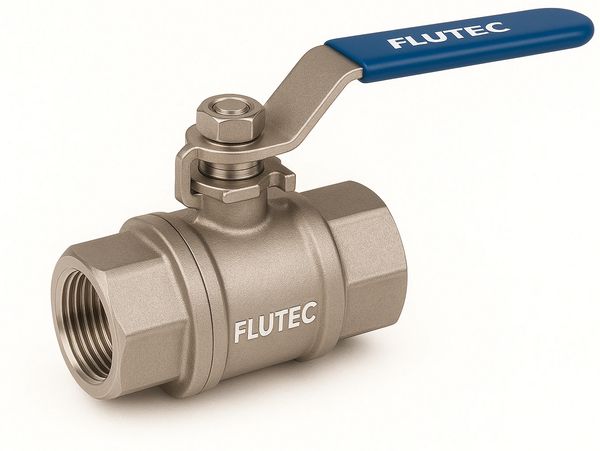

WCB / Stainless Steel Low Pressure Ball Valves (KHNVN/KHNVS)

sanitary,plumbing ball valve,ANSI150, ANSI300,KHNVN,KHNVS,screwed end, brass, bronze,forged,casting,

Low Pressure Ball valves upto 20/70 bar for Air/Water/Oil.

  • Pressure Rating: up to 20/70 bar, ANSI 150/300 class
  • Temperature Rating: -20°C to +100°C
  • Size Range: 1/8” to 4”
  • Material of Construction: WCB / CF8 / CF8M (SS 304 / SS 316) / Brass
  • Coating: painted/SS304/SS316, etc.
  • O-ring: PTFE, NBR, Viton and other on request
  • End Connection: BSP, NPT, Flange ANSI 150 class as per ASME B16.5/B16.10
  • Flow Media: Air, Water, Oil, Gas.
  • Application: Sewage, Plumbing, Water Filteration, Firefighting, Green Hydrogen, Vacuum industry, Renewable energy, etc.

Buy online

KHNVN Ball Valves with BSP, NPT, UNF - 20 bar, ANSI 150/300

Low Pressure Ball Valve with PTFE seals

Stainless Steel Valves readily available in Stock

KHNVN-G1/8-3333-18X

1/8"

Ball Valve with 1/8" BSP thread connection

KHNVN-G1/4-3333-18X

1/4"

Ball Valve with 1/4" BSP thread

KHNVN-G3/8-3333-18X

3/8"

Ball Valve with 3/8" BSP thread

KHNVN-G1/2-3333-18X

1/2"

Ball Valve with 1/2" BSP thread

KHNVN-G3/4-3333-18X

3/4"

Ball Valve with 3/4" BSP thread connection

KHNVN-G1-3333-18X

1"

Ball Valve with 1" BSP thread

KHNVN-G1.1/4-3333-18X

1.1/4"

Ball Valve with 1.1/4" BSP thread 1.1/4

KHNVN-G1.1/2-3333-18X

1.1/2"

Ball Valve with 1.1/2" BSP thread connection

KHNVN-G2-3333-18X

2"

Ball Valve with 1.1/2" BSP thread connection

KHNVN-G2.1/2-3333-18X

2.1/2"

Ball Valve with 2" BSP thread connection

KHNVN-G3-3333-18X

3"

Ball Valve with 3" BSP thread connection

Ball Valves with different materials, straight and bent handles, Seals like Viton and PEEK are available on request

KHNVS Ball Valves with BSP, NPT, UNF - 70 bar, ANSI900 class

Low Pressure Ball Valve with PTFE seals ( heavy duty)

Stainless Steel Valves readily available in Stock

KHNVS-G1/8-3333-18X

1/8"

Ball Valve with 1/8" BSP thread connection

KHNVS-G1/4-3333-18X

1/4"

Ball Valve with 1/4" BSP thread

KHNVS-G3/8-3333-18X

3/8"

Ball Valve with 3/8" BSP thread

KHNVS-G1/2-3333-18X

1/2"

Ball Valve with 1/2" BSP thread

KHNVS-G3/4-3333-18X

3/4"

Ball Valve with 3/4" BSP thread connection

KHNVS-G1-3333-18X

1"

Ball Valve with 1" BSP thread

KHNVS-G1.1/4-3333-18X

1.1/4"

Ball Valve with 1.1/4" BSP thread 1.1/4

KHNVS-G1.1/2-3333-18X

1.1/2"

Ball Valve with 1.1/2" BSP thread connection

KHNVS-G2-3333-18X

2"

Ball Valve with 2" BSP thread connection

KHNVS-G2.1/2-3333-18X

2.1/2"

Ball Valve with 2.1/2" BSP thread connection

KHNVS-G3-3333-18X

3"

Ball Valve with 3" BSP thread connection

Ball Valves with different materials, straight and bent handles, Seals like Viton and PEEK are available on request

Datasheets

Material WCB, BSP and NPT threaded, 20 bar, 150 psi (pdf)Download
Material SS304, BSP, 20 bar, 150 psi (pdf)Download
Material SS304, BSP, 70bar, 1000 psi (pdf)Download
