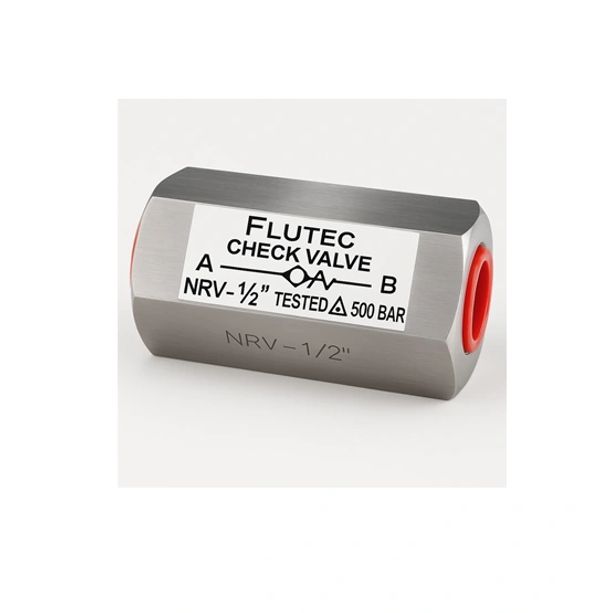

Non Return Valve / Check Valve (RV / RVP / NRV)

 Flutec check valve / non return valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction.

Flutec High Pressure Non Return Valve (NRV) also known as High Pressure Check Valve is designed as per German Technology for one directional flow regulation. Flutec team has specialized themselves in High Pressure application and so conventionally available non return valve in almost all major store cannot be the substitute of Flutec Non Return Valves (NRV). High Pressure application can be dangerous in case of failure.  This compact design High Pressure Non Return Valve (NRV / Check Valve) are manufactured for High Pressure up to 1000bar (15000PSI) & have huge application in High Pressure Hydraulic Systems.

• Pressure Rating: Standard 500 bar upto 1000 bar
• Temperature Rating: -20°C to +250°C
• Size Range: 1/4” to 2”
• Material of Construction: Carbon steel / Stainless Steel (SS 304 / SS 316)
• End Connection: Screwed End (BSP, BSPT, NPT)
• Flow Media: Hydraulic Oil, Water, Gas, Air, cold water, hot water, steam, chemicals etc.
• Application: Material Handling Equipments,  Earth Moving Machineries, Power generating Plants, Steel Manufacturing Plants, Mining Industries, Forklifts, Trucks / Trailers, Chemical Processing Machines etc.
