Valve Accessories: Actuators / Limitswitch / Solenoid Valve

explosion proof pneumatic actuator, ATEX certified, flameproof actuator, SIL certified actuator, CE

FLUeX Pneumatic Actuator: Double Acting/Single Acting | Explosion Proof | ATEX Certified | SIL certified

FLUTEC pneumatic actuators are 100% tested and come with Aluminium annodized body.

From Torque 30 Nm to 1000 Nm
0 to 90 degree, quarter turn switching
Mounting as per ISO5211
Namur connection for solenoid valve
Top connection for Micro limit switch box 80x30mm
Optical Indicator, which can be removed
Max. 10 bar pilot pressure
Explosion Proof, Flameproof Certified
ATEX Certified + SIL3 capable

Buy Online / See Datasheet

micro limit switch box, ISO5211, optical indicator

Buy Micro Limit Switch Box mounted on the actuator

Optical Indicator "Open" "Closed"
6 Terminal contact points
Dual 1/2" conduit entries
Can be assembled on any ISO5211 rotary motion actuator, 80x30mm
Switch Type: 1NO and 1NC

Buy Online / Datasheet

Buy Solenoid Valve Namur Type, to be mounted on the actuator

5/2 or 3/2 Directional Solenoid Valve
Voltage: 24 VDC or 230 VAC
Double Acting / Single Acting with multiple solenoid and spring type arrangement

Buy Online / Datasheet

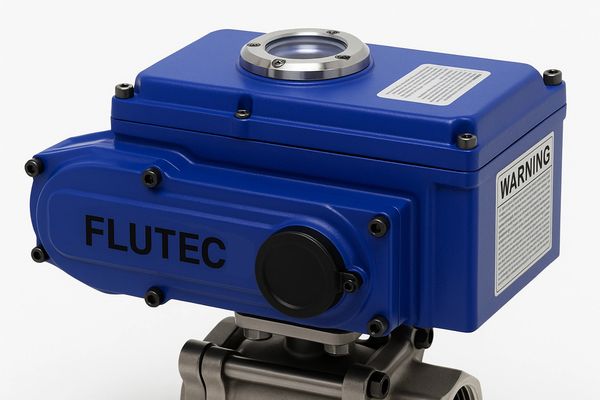

Electric Actuator for Ball Valve, Needle Valve, Globe Valve

explosion proof electric actuator, ATEX certified, flameproof actuator, ATEX Ex db IIB T4 Gb

FVQ Explosion proof Electric Actuator: Quarter Turn 0-90° or Modulating | Flameproof | ATEX Certified

Quarter Turn 0-90°

For Ball Valves and Butterfly Valves

Modulating

For Flow control valves, Needle valves and Globe valves. Where the stroke length can be controlled by input current/voltage

From Torque 20 Nm to 1000 Nm
Mounting as per ISO5211
Optional with PESO / IECEX / ATEX Certification, Flameproof
Optional with Failsafe Battery Backup or spring return
Optional with positioner, MODBUS, etc.
ATEX Ex db IIB T4 Gb
ATEX Ex db IIC T6 Gb

Buy Online / See Datasheet
