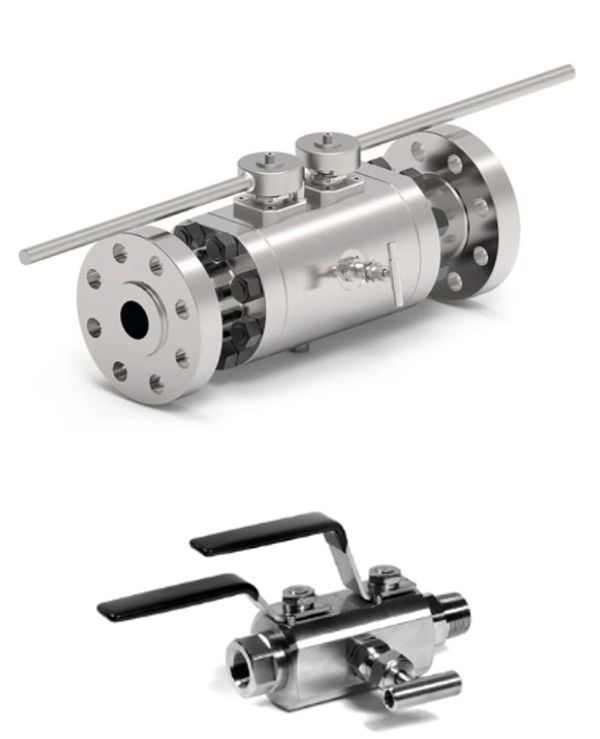

DBB is a critical safety and isolation device used in piping systems to ensure a positive shut-off and allow for safe maintenance, instrument calibration, or pressure relief. The function of DBB valves is achieved using FLUTEC ball valves and needle valves
- Pressure Rating: up to 500/1000 bar (Standard 500 bar/7500 psi)
- Temperature Rating: -20C to +250C
- Size Range:1/8” to 3”
- Material of Construction: Carbon steel / Stainless Steel (SS 304 / SS 316) / Brass
- Coating: Phospate, Zinc, etc.
- O-ring: NBR, Viton and other on request
- End Connection: BSP, BSPT, NPT Male/Female, Cone and thread, Flanged End, Pipe OD Ermeto Connection, ANSI Flange, DIN Flange, ISO 6162-1/2 SAE Flange, ISO 6164-1/2
- Flow Media: Hydraulic Oil, Water, Gas, Air, cold water, hot water, steam, chemicals, etc.
- Application: Hydraulic and Mobile applications, Agriculture and Construction, Firefighting, Block and Bleed, Earth moving vehicles, Trailers, Lifts, etc.
